Inverters and Voltage Converters, Inverter Systems

5 товаров

Voltage inverters are intended to convert DC voltage to AC voltage. They can be used at facilities where there is a backup rechargeable battery or an external DC source of the required voltage.



DC voltage converters are intended to supply stable power to communication and telecommunication equipment, security systems, as well as to industrial equipment with nominal DC voltage of 12, 24, 60 V, when operating from a DC source with a nominal voltage of 48 or 60V.

Warranty and service

“OOO ATS-CONVERS” provides technical support for the entire range of voltage inverters and converters, which includes warranty and post-warranty repair, maintenance, commissioning of equipment, as well as free consultations.



You can ask our specialists any questions arising during the operation of the equipment.

Filter
Sort by:

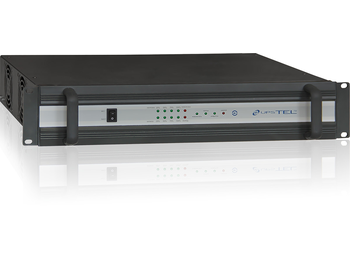

Инверторы напряжения промышленного назначения UPStel-500/48RS-2U
Nominal input voltage for AC / DC grid, V 220(230) / 48
Input voltage range for AC/DC, V 156-288 / 40-60
Nominal AC output voltage sets when powered by DC source, V 208 / 220 / 230 / 240
Nominal output capacity, VA/W 500/400
Overall dimensions (WxHxD), mm 483(19”)x88(2U)х395
Mass, kg 8,2
Инверторы напряжения промышленного назначения UPStel-1000/48RS-2U
Nominal input voltage for AC / DC grid, V 220(230) / 48
Input voltage range for AC/DC, V 156-288 / 40-60
Nominal AC output voltage sets when powered by DC source, V 208 / 220 / 230 / 240
Nominal output capacity, VA/W 1000/800
Overall dimensions (WxHxD), mm 483(19”)x88(2U)х395
Mass, kg 8,2
Инверторы напряжения промышленного назначения UPStel-2000/48RS-2U
Nominal input voltage for AC / DC grid, V 220(230) / 48
Input voltage range for AC/DC, V 156-288 / 40-60
Nominal AC output voltage sets when powered by DC source, V 208 / 220 / 230 / 240
Nominal output capacity, VA/W 2000/1600
Overall dimensions (WxHxD), mm 483(19”)x88(2U)х395
Mass, kg 8,2
Инверторы напряжения промышленного назначения UPStel-3000/48RS-2U
Nominal input voltage for AC / DC grid, V 220(230) / 48
Input voltage range for AC/DC, V 156-288 / 40-60
Nominal AC output voltage sets when powered by DC source, V 208 / 220 / 230 / 240
Nominal output capacity, VA/W 3000/2400
Overall dimensions (WxHxD), mm 483(19”)x88(2U)х525
Mass, kg 13,5

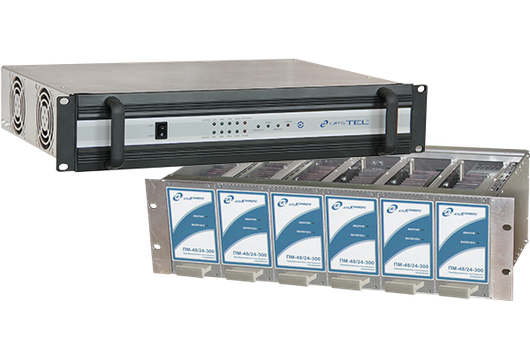

Преобразователи постоянного напряжения ПП-48М
Nominal input voltage, V 48 / 60
Static input voltage range, V from 36 to 76
Nominal output voltage, V 12 / 24 /60
Nominal output capacity (depends on the type and number of converter modules), kW from 0,15 to 3,3
Price: upon request
Request a price get a consultation
