Uninterrupted power supply with direct current

9 товаров

OOO «ATS-CONVERS» specializes in the development, manufacturing and maintenance of DC uninterruptible power supply (SBEP) systems.



SBEP are intended to supply power to communication and telecommunication equipment, as well as to various industrial equipment with a nominal voltage of 48 V DC in a buffer with a rechargeable battery or without it. The systems are intended to operate with a single-phase three-wire or three-phase five-wire AC grid 220/380 V, 50 Hz frequency, as well as with motor-generator sets.

Key advantages

  • Monitoring of all modules included in the system, accumulator battery status and load. Remote control and administration Monitoring of all modules included in the system, accumulator battery status and load. Remote control and administration
  • Simultaneous power supply to consumers and charging (float charging) of accumulator battery Simultaneous power supply to consumers and charging (float charging) of accumulator battery
  • "Hot" swap of rectifier modules and controllers "Hot" swap of rectifier modules and controllers
  • Disabling non-priority load Disabling non-priority load
  • Universal AC input (single-phase/three-phase) Universal AC input (single-phase/three-phase)
  • Wide range of system logs Wide range of system logs
Key advantages

Warranty and service

“OOO ATS-CONVERS” provides technical support for the entire range of uninterruptible power supplies, which includes warranty and post-warranty repair, maintenance, commissioning of equipment, as well as free consultations.



You can ask our specialists any questions arising during the operation of the equipment.

Filter
System height, units:
Maximum output power, kW (whole number):
Maximal output current, A (from 50 to 1500):
Sort by:

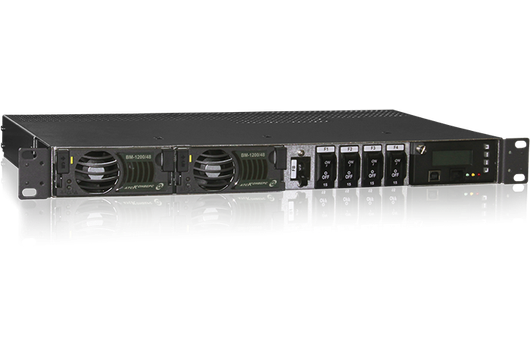

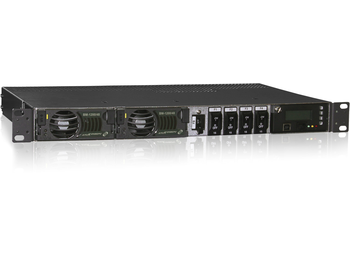

Системы бесперебойного электропитания постоянного тока СБЭП-48/52М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 2,4
Maximal output current, A 52
UPSS overall dimensions without cabinet (WxHxD), mm 483(19”)x44,5(1U)х270
UPSS weight without cabinet, kg 7,0
Системы бесперебойного электропитания постоянного тока СБЭП-48/104М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 4,8
Maximal output current, A 104
UPSS overall dimensions without cabinet (WxHxD), mm 483(19”)x89(2U)х297
UPSS weight without cabinet, kg 13,5
Системы бесперебойного электропитания постоянного тока СБЭП-48/180М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 8,7
Maximal output current, A 180
UPSS overall dimensions without cabinet (WxHxD), mm 483(19”)x89(2U)х430
UPSS weight without cabinet, kg 19
Системы бесперебойного электропитания постоянного тока СБЭП-48/240М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 11,6
Maximal output current, A 240
UPSS overall dimensions without cabinet (WxHxD), mm 483(19”)x222(5U)х400
UPSS weight without cabinet, kg 25
Системы бесперебойного электропитания постоянного тока СБЭП-48/300М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 14,5
Maximal output current, A 300
UPSS overall dimensions without cabinet (WxHxD), mm 483(19”)x133(3U)х408
UPSS weight without cabinet, kg 28
Системы бесперебойного электропитания постоянного тока СБЭП-48/480М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 23,2
Maximal output current, A 480
UPSS overall dimensions without cabinet (WxHxD), mm 483(19”)x267(6U)х400
UPSS weight without cabinet, kg 38
Системы бесперебойного электропитания постоянного тока СБЭП-48/500М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 25
Maximal output current, A 500
UPSS overall dimensions without cabinet (WxHxD), mm 482(19”)x311(7U)х400
UPSS weight without cabinet, kg 47,5
Системы бесперебойного электропитания постоянного тока СБЭП-48/1440М
Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 69,6
Maximal output current, A 1440
UPSS cabinet overall dimensions (WxHxD), mm 600х2070х600
UPSS cabinet mass, kg 270
Системы бесперебойного электропитания постоянного тока СБЭП-48М-ПП-СПТ

Combined DC and AC uninterruptible power supply



Extreme range of input Y-voltage, V 85 - 300
Direct current nominal input voltage, V 48, 24, 60, 12
Alternating current nominal output voltage, V 220 / 380
Maximum output power for 48 V output, kW 25
Maximum output power for 12/24/60 V outputs, kW 1,65/3,3/3,3
Maximum output power for 220 V output, kVA до 30
Price: upon request
Request a price get a consultation
