СБЭП-48/52М

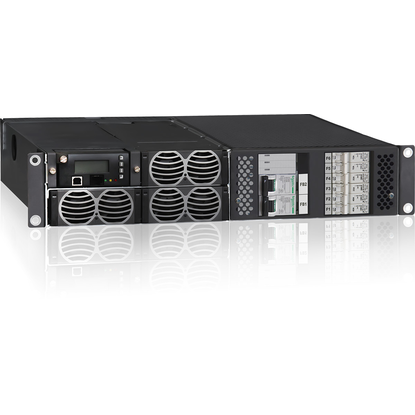

Compact direct current uninterruptible power supply system (rectifying system) of medium power



SBEP is intended to supply power to communication and telecommunication equipment, as well as to various industrial equipment with direct current of nominal voltage 48 V in a buffer with a rechargeable battery or without it.



Extreme range of Y-voltage, V 85 - 300
Voltage frequency range, Hz 44 - 66
Nominal output voltage, V 48
Output voltage adjustment range, V 46- 57
Maximum output power, kW 2,4
Maximal output current, A 52
UPSS overall dimensions without cabinet (WxHxD), mm 483(19”)x44,5(1U)х270
UPSS weight without cabinet, kg 7,0
Scope of use:
  • Specialized equipment with nominal voltage 48 V DCSpecialized equipment with nominal voltage 48 V DC
  • Cellular operator towersCellular operator towers
  • Industrial facilitiesIndustrial facilities
  • Communication and telecommunication equipmentCommunication and telecommunication equipment
Special features of SBEP-48M uninterruptible power supply systems
  • Simultaneous power supply to consumers and charging (float charging) of accumulator batterySimultaneous power supply to consumers and charging (float charging) of accumulator battery
  • "Hot" swap of rectifier modules and controllers"Hot" swap of rectifier modules and controllers
  • Disabling non-priority loadDisabling non-priority load
  • Configuring SBEP settings interactively using LCDConfiguring SBEP settings interactively using LCD
  • Monitoring of all modules included in the system, accumulator battery status and load. Remote control and administrationMonitoring of all modules included in the system, accumulator battery status and load. Remote control and administration
  • Wide range of system logsWide range of system logs
