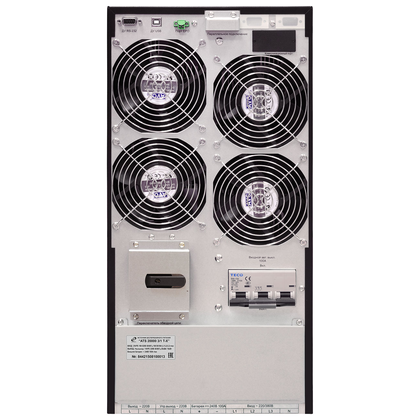

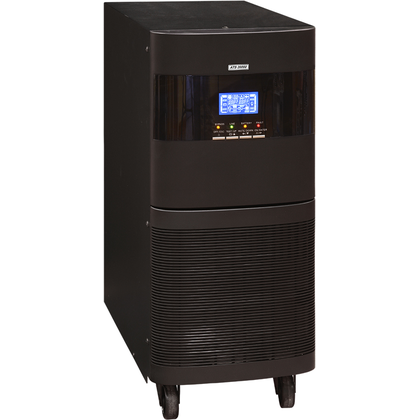

ATS 20000 3/1 T-X

On-line uninterruptible power sources with a unique set of energy saving functions. Intended for the organization of uninterruptible power supply systems and reliable protection of equipment against power quality defects in AC grids.



Nominal rating power Pnom, kVA/kW 20/18
Number of phases at input/output 3/1
Charging current provided by the UPS charger, A 8,0
Built-in rechargeable batteries No
Battery rated voltage, V 240
Overall dimensions (HxWxD), mm 576x250x592
Weight, kg 43
Scope of use:
  • Business centers and shopping mallsBusiness centers and shopping malls
  • Telecommunication equipmentTelecommunication equipment
  • Servers, workstationsServers, workstations
  • Industrial equipmentIndustrial equipment
Special features of EcoPower series
  • Increased input and output power factorsIncreased input and output power factors
  • Output voltage shape — clear sine waveOutput voltage shape — clear sine wave
  • Increase of power output and multiple scaling of accumulator battery total capacityIncrease of power output and multiple scaling of accumulator battery total capacity
  • Long time of autonomous workLong time of autonomous work
  • High overload capacity allows you to connect loads with large starting currentsHigh overload capacity allows you to connect loads with large starting currents
  • Stabilization of output voltage parameters in a wide range of grid parametersStabilization of output voltage parameters in a wide range of grid parameters
